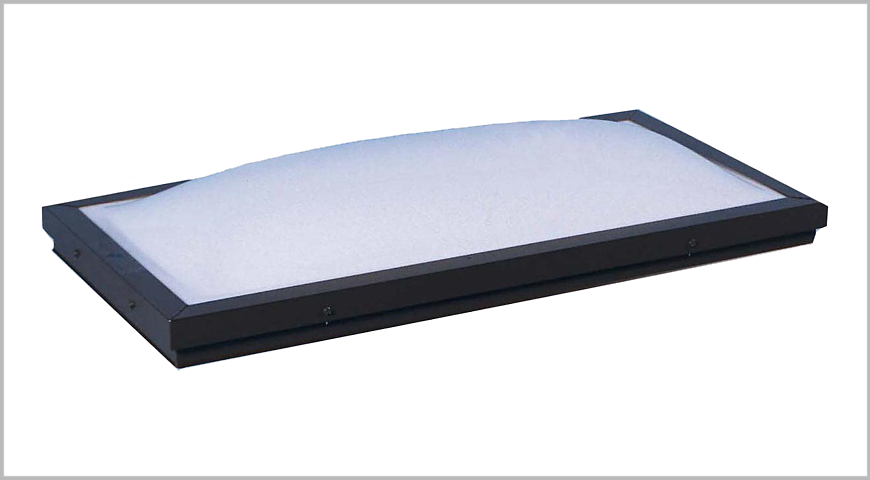

Units can be Domed or Pyramid style; Single or Double glazed in Acrylic or Lexan (Polycarbonate), with custom tinting and frame colors available. Also available in Thermally Broken Curb Mounted units, recommended for cold weather climates.
Square |
|
Outside Curb Dimension |
Outside Curb Dimension |
17 ¼" X 17 ¼” |
48” X 48” |
24” X 24” |
49 ¼” X 49 ¼” |
25 ¼” X 25 ¼” |
59 ¼” X 59 ¼” |
33 ¼” X 33 ¼” |
73 ¼” X 73 ¼” |
36” X 36” |
93 ¼" X 93 ¼" |
Rectangle |
|
17 ¼” X 19 ¼” |
25 ¼” x 59 ¼” |
17 ¼” X 25 ¼” |
25 ¼” X 73 ¼” |
17 ¼” X 33 ¼” |
25 ¼” X 93 ¼” |
17 ¼” X 49 ¼” |
33 ¼” X 49 ¼” |
17 ¼” X 59 ¼” |
36” x 48” |
17 ¼” X 73 ¼” |
33 ¼” X 59 ¼” |
24” X 36” |
33 ¼” X 73 ¼” |
24” X 48” |
33 ¼” X 93 ¼” |
24” X 60” |
49 ¼” X 59 ¼” |
24” X 72” |
49 ¼” X 73 ¼” |
24” X 96” |
49 ¼” X 93 ¼” |
25 ¼” X 33 ¼” |
59 ¼” X 73 ¼” |
25 ¼” X 37 ¼” |
59 ¼” X 93 ¼” |
25 ¼” X 49 ¼” |
73 ¼” X 93 ¼” |
*Standard dimensions listed, though custom sizes are available. Units can be Domed or Pyramid style; Single or Double glazed in Acrylic or Lexan (Polycarbonate), with custom tinting and frame colors available. Also available in Thermally Broken Curb Mounted units, recommended for cold weather climates.
Specifications: Acrylic (Dome or Pyramid) skylights shall be Non-Thermally Broken OR Thermally Broken Curb Mount Model ____(size) as furnished by Savannah Trims, Inc. The skylights shall be factory assembled unit(s), each consisting of sealed (acrylic) domes or pyramids to support 40 PSF live load, with a .078 extruded aluminum frame with polyurethane thermal break to prevent condensation on interior portions of aluminum frame (if Thermally Broken option chosen) and .070 glazing retaining angle. Each unit will have evaporative condensate gutter, with no weep holes, to prevent air infiltration or exfiltration. Glazing materials are not designed to support the weight of a person.
Pricing Note: We ask that you call for pricing in order for us to get an accurate shipping quote. Keep in mind that there will be added savings if you order two or more skylights.
Please have your skylight Outside Curb Dimensions when you call.
