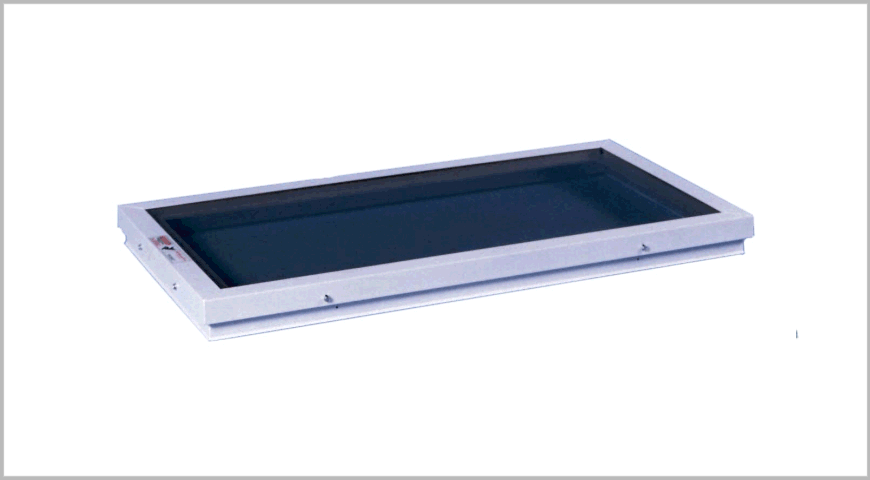

Manufactured to the highest standards with the highest quality domes.
Units can be Single Pane or Insulated Double Pane with custom tinting and frame colors available.
Square |
|
Outside Curb Dimension |
Outside Curb Dimension |
17 ¼" X 17 ¼” |
36” X 36” |
24” X 24” |
48” X 48” |
25 ¼” X 25 ¼” |
49 ¼” X 49 ¼” |
33 ¼” X 33 ¼” |
59 ¼” X 59 ¼” |
Rectangle |
|
17 ¼” X 19 ¼” |
25 ¼” X 37 ¼” |
17 ¼” X 25 ¼” |
25 ¼” X 49 ¼” |
17 ¼” X 33 ¼” |
25 ¼” x 59 ¼” |
17 ¼” X 49 ¼” |
25 ¼” X 73 ¼” |
17 ¼” X 59 ¼” |
25 ¼” X 93 ¼” |
17 ¼” X 73 ¼” |
33 ¼” X 49 ¼” |
24” X 36” |
36” x 48” |
24” X 48” |
33 ¼” X 59 ¼” |
24” X 60” |
33 ¼” X 73 ¼” |
24” X 72” |
33 ¼” X 93 ¼” |
24” X 96” |
49 ¼” X 59 ¼” |
25 ¼” X 33 ¼” |
49 ¼” X 73 ¼” |
*Standard dimensions listed, though custom sizes are available. Units can be Single Pane or Insulated Double Pane with custom tinting and frame colors available.
Also available with Thermally Broken Curbs, recommended for cold weather climates.

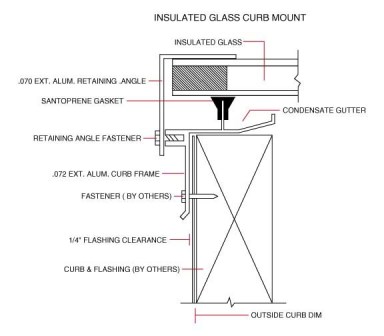

Specifications: Insulated Glass skylights shall be Non-Thermally Broken or Thermally Broken Curb Mount Model _____(size) as furnished by Savannah Trims. The Skylights shall be factory assembled unit(s), each consisting of insulated glass (specify tint and special coatings)____ glazing, to support 40 PSF live load with a .078 extruded aluminum frame with polyurethane themal break to prevent condensation on interior portions of aluminum frame (if Thermally Broken option chosen and .070 extruded aluminum glazing retaining angle. The skylights are to be completely sealed between glass and frame members. Each unit will have evaporative condensate gutters, with no weep holes, to prevent air infiltration or exfiltration. Glazing materials are not designed to support the weight of a person.
Pricing Note: We ask that you call for pricing in order for us to get an accurate shipping quote. Keep in mind that there will be added savings if you order two or more skylights.
Please have your Outside Curb Dimensions when you call.
