Manufactured to the highest standards with the highest quality domes.
Curb heights available in 4", 6", 9" & 12". Units can be Single Pane or Insulated Double Pane with custom tinting and frame colors available.
Square |
|
Outside Curb Dimension |
Outside Curb Dimension |
17 ¼" X 17 ¼” |
36” X 36” |
24” X 24” |
48” X 48” |
25 ¼” X 25 ¼” |
49 ¼” X 49 ¼” |
33 ¼” X 33 ¼” |
59 ¼” X 59 ¼” |
Rectangle |
|
17 ¼” X 19 ¼” |
25 ¼” X 37 ¼” |
17 ¼” X 25 ¼” |
25 ¼” X 49 ¼” |
17 ¼” X 33 ¼” |
25 ¼” x 59 ¼” |
17 ¼” X 49 ¼” |
25 ¼” X 73 ¼” |
17 ¼” X 59 ¼” |
25 ¼” X 93 ¼” |
17 ¼” X 73 ¼” |
33 ¼” X 49 ¼” |
24” X 36” |
36” x 48” |
24” X 48” |
33 ¼” X 59 ¼” |
24” X 60” |
33 ¼” X 73 ¼” |
24” X 72” |
33 ¼” X 93 ¼” |
24” X 96” |
49 ¼” X 59 ¼” |
25 ¼” X 33 ¼” |
49 ¼” X 73 ¼” |
*Standard dimensions listed, though custom sizes are available. Units can be Single Pane or Insulated Double Pane with custom tinting and frame colors available.
Also available with Thermally Broken Self-Flashing Curbs, recommended for cold weather climates.

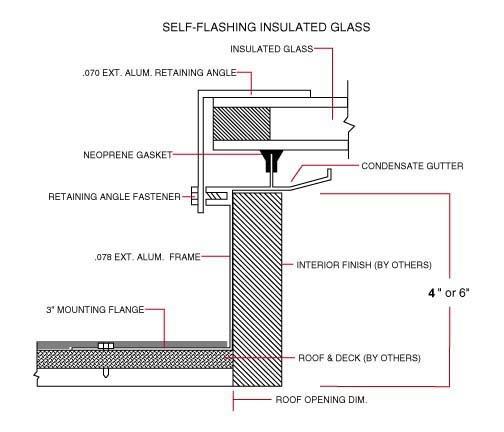

Specifications: Insulated Glass skylights shall be Savannah Trim's Model (for 4") SF or (6") 6SF (size) Self Flashing as furnished by Savannah Trims. The skylight(s) shall be factory assembled unit(s), each consisting of insulated glass (specifiy tint and special coatings) __________ glazing, to support 40 PSF live load with a .078 extruded aluminum curb frame with .070 extruded aluminum glazing retaining angle. Each unit shall have an integral 10 degree sloping condensate gutter with drainage slots to carry all moisture to the outside, and a 3" mounting flange ready for installation to roof deck. Glazing materials are not designed to support the weight of a person.
Pricing Note: We ask that you call for pricing in order for us to get an accurate shipping quote. Keep in mind that there will be added savings if you order two or more skylights.
Please have your Outside Curb Dimensions when you call.
