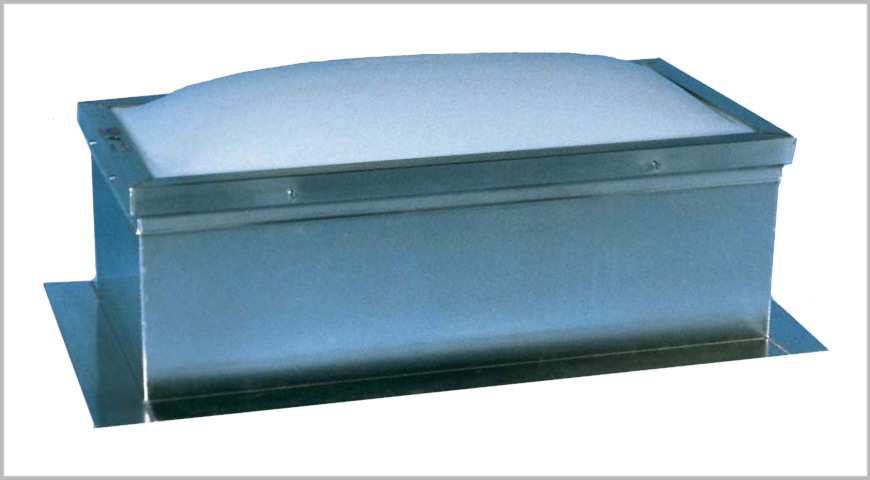

Curb heights available in 4", 6", 9" & 12". Units can be Domed or Pyramid style; Single or Double glazed in Acrylic or Lexan (Polycarbonate), with custom tinting and frame colors available. Also available with Thermally Broken Self-Flashing Curbs, recommended for cold weather climates.
Square |
|
Roof Opening Dimension |
Roof Opening Dimension |
14 ¼” X 14 ¼” |
48” X 48” |
24” X 24” |
46 ¼” X 46 ¼” |
22 ¼” X 22 ¼” |
56 ¼” X 56 ¼” |
30 ¼” X 30 ¼” |
70 ¼” X 70 ¼” |
36” X 36” |
90 ¼” X 90 ¼” |
Rectangle |
|
14 ¼” X 16 ¼” |
22 ¼” x 56 ¼” |
14 ¼” X 22 ¼” |
22 ¼” X 70 ¼” |
17 ¼" X 30 ¼" |
22 ¼” X 90 ¼” |
14 ¼” X 46 ¼” |
30 ¼” X 46 ¼” |
14 ¼” X 56 ¼” |
36” x 48” |
14 ¼” X 70 ¼” |
30 ¼” X 56 ¼” |
24” X 36” |
30 ¼” X 70 ¼” |
24” X 48” |
30 ¼” X 90 ¼” |
24” X 60” |
46 ¼” X 56 ¼” |
24” X 72” |
46 ¼” X 70 ¼” |
24” X 96” |
46 ¼” X 90 ¼” |
22 ¼” X 30 ¼” |
56 ¼” X 70 ¼” |
22 ¼” X 34 ¼” |
56 ¼” X 90 ¼” |
22 ¼” X 46 ¼” |
70 ¼” X 90 ¼” |
*Standard dimensions listed, though custom sizes are available. Units can be Domed or Pyramid style; Single or Double glazed in Acrylic or Lexan (Polycarbonate), with custom tinting and frame colors available. Also available with Thermally Broken Self-Flashing Curbs, recommended for cold weather climates.
Specifications: Acrylic (Dome or Pyramid) Non-Thermally Broken OR Thermally Broken skylights shall be furnished by Savannah Trims, Inc. in varying heights of 4", 6", 9" or 12" (curb size). The skylight(s) shall be factory assembled unit(s), each consisting of Acrylic (domes or pyramids) made from several tints and sizes with material to support 40 PSF live load, with a .078 extruded aluminum glazing frame with polyurethane thermal break to prevent condensation on interior portions of aluminum frame (if Thermally Broken option chosen) and .070 extruded aluminum glazing retaining angle. Each unit will have an evaporative condensate gutter with no weep holes to prevent air infiltration and exfiltration. Insulated curb shall be constructed of double wall corrosion resistant aluminum .032 inner and .050 outer walls connected at top and bottom with thermal barriers. Units shall have 3" mounting flange ready for installation to roof deck. Glazing materials are not designed to support the weight of a person.
Pricing Note: We ask that you call for pricing in order for us to get an accurate shipping quote. Keep in mind that there will be added savings if you order two or more skylights.
Please have your skylight Outside Curb Dimensions when you call.
